The 7-ton fork clamp is independently designed and manufactured by Riegelert. It represents the highest load-bearing capacity ever produced by our company to date.

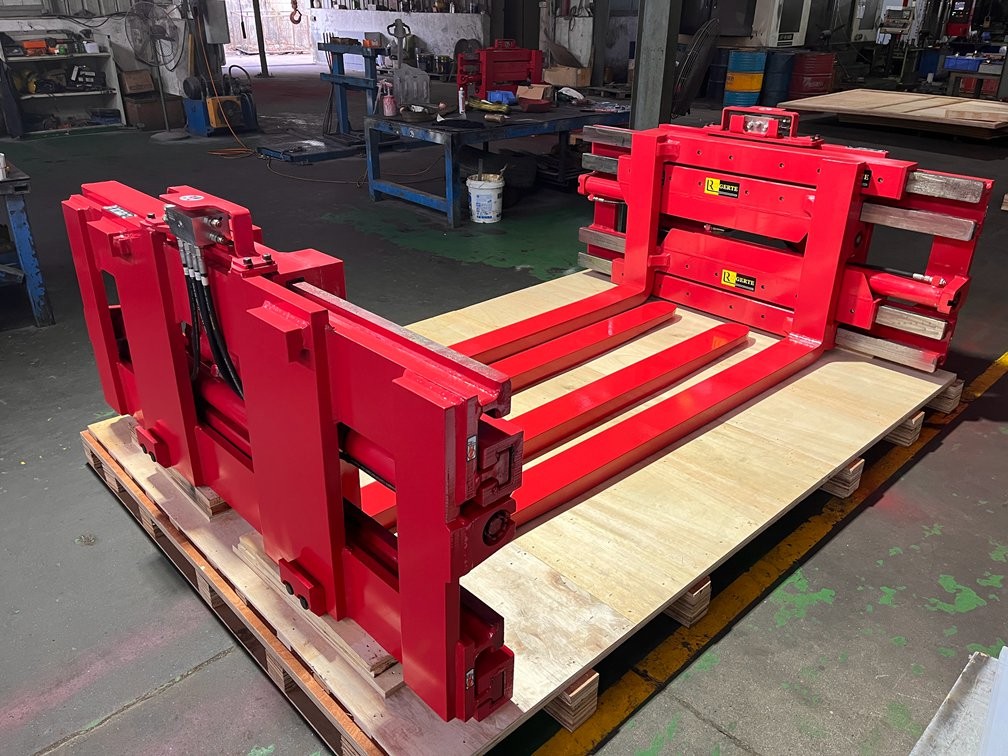

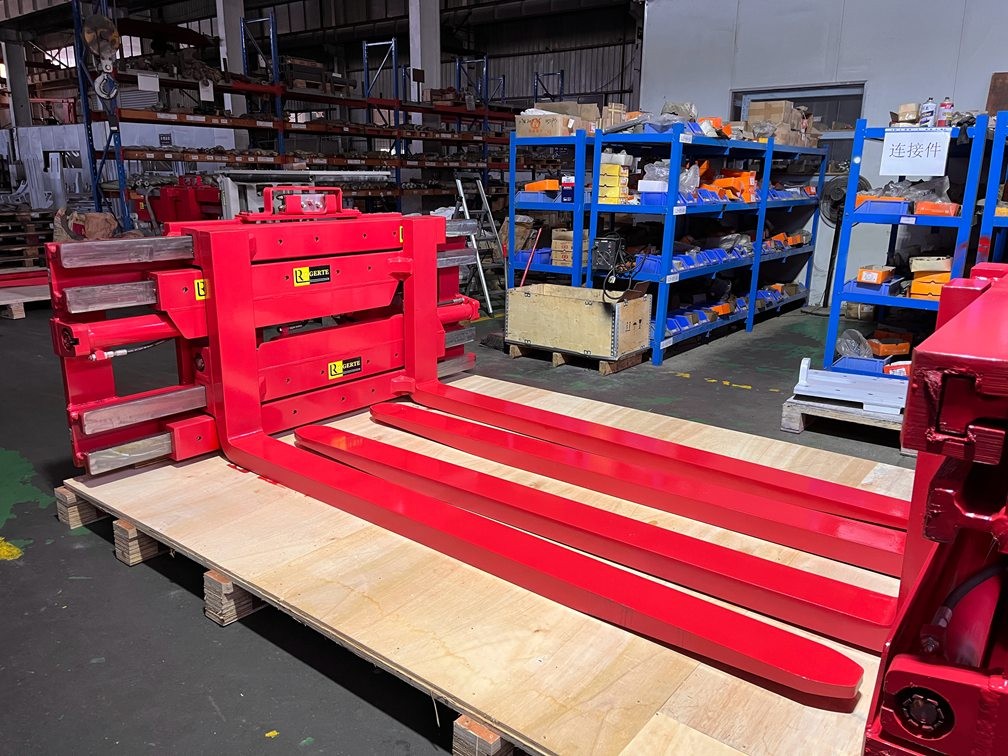

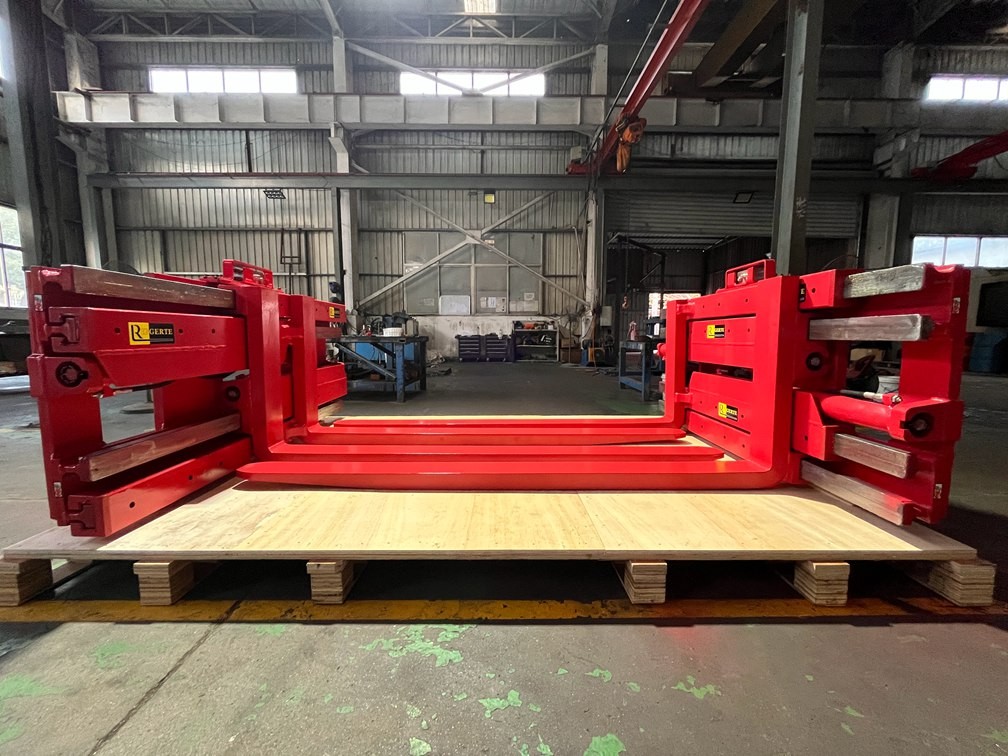

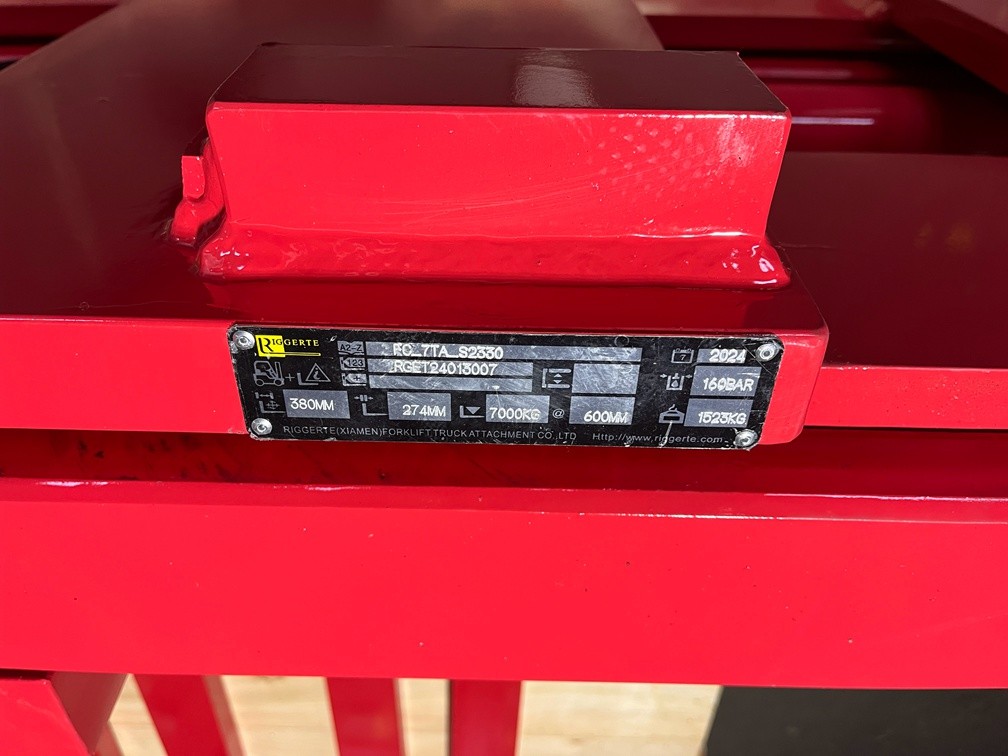

Please check the attached specification and pictures for your reference.

1. Model No.: FC-7TA-S2330
2. Loading capacity: 7000KGS@600mm, 3800KGS@1100mm.
3. Opening range: 260-2330mm
4. Mounting Class: 4A (for 7~9tons forklift )
5. Fork size: 2200x150x70mm
6. Weight: About 1623KGS
7. Effective thickness: 274mm
